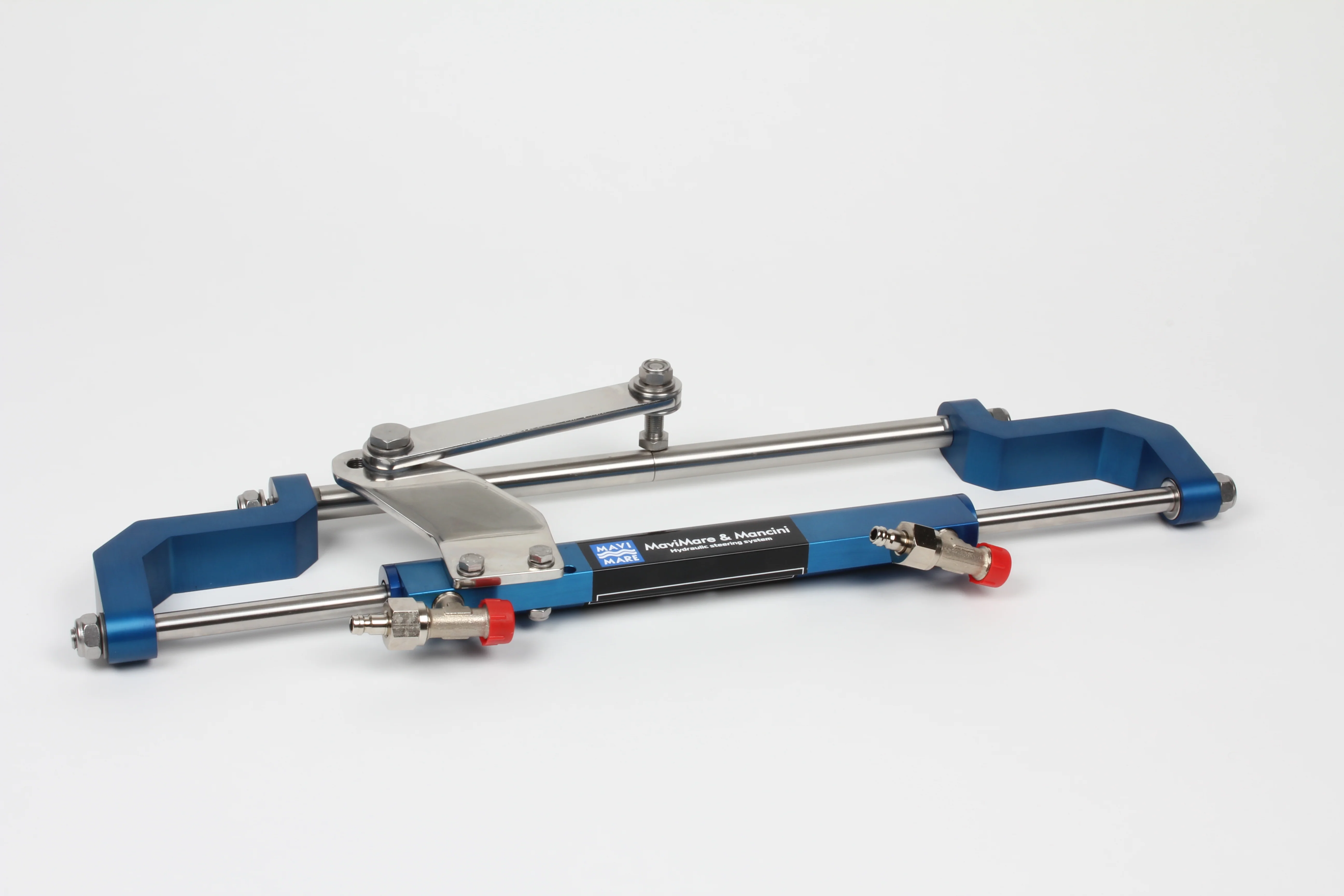

Mavimare GF 90 BT Hydraulic Outboard Steering 80 HP
The Mavimare GF 90 BT is a heavy-duty hydraulic steering system engineered for outboard motors with a maximum rating of 80 HP. The system components, including the pump and cylinder, are manufactured from high-grade aluminum and 316 stainless steel. All hardware consists of A4-grade stainless steel to ensure corrosion resistance in saltwater conditions. The kit includes two 5-meter hoses equipped with heavy-duty compression fittings, allowing for custom length adjustments during installation. These hoses are rated for a maximum working pressure of 200 bar with a test pressure of 300 bar. The steering pump operates at a maximum pressure of 70 bar and incorporates an integrated pressure relief valve and non-return valves. This system is compatible with a wide range of outboard engine brands within the specified horsepower range. It is particularly recommended for engines between 10 HP and 60 HP, though it supports up to 80 HP maximum.
Used. Sold as a used unit. The original factory warranty has expired or is non-transferable — any remaining coverage is only as stated in writing on your invoice.
- HTTPS CheckoutEncrypted connection
- No factory warrantySee condition & warranty above
- Crated FreightDamage claim assistance
- Free LTL ShippingContiguous U.S.
Match your transom height. Measured top of transom to keel.
Smart Compatibility Checker
Enter your transom measurement and the USCG max-HP plate rating from your hull.
Every spec, no calls required
- Horsepower
- 80 HP
- Stroke
- 4-Stroke
- Displacement
- 1502 cc
- Cylinders
- 4
- Operating RPM Range
- Gear Ratio
- 2.00:1
What's in the Crate
Each engine ships on a reinforced LTL pallet. Crated weight approx. 448 lb.
- Powerhead with factory-sealed cowling and cylinder cover
- Mounting hardware kit — BIA standard
- Integrated power trim/tilt assembly (pre-charged)
- Owner's manual, warranty registration card, and rigging diagrams
- Anode set installed (saltwater-grade zinc/aluminum)
- Propeller (sold separately — see compatible diameters in specs)
- Throttle/shift controls, harness, and key switch
- Rigging gauges (tach, fuel, trim) and digital display
- Battery, battery cables, and isolator
- Steering helm, hoses, and hydraulic fluid
Freight & Transit Estimator
LTL liftgate delivery to the lower 48. Carrier calls to schedule a 4-hour window.
- Crated weight
- 448 lb
- Crate dims
- 60" × 32" × 42"
- Carrier class
- LTL Class 85
- Signature
- Required at delivery
Compatibility & Rigging FAQ
Mechanical and electrical facts for your rigger. Specifications follow ABYC and OEM service standards.
